Rain Gun

A Rain gun is a high-performance micro-irrigation device and it is designed for a variety of uses and applications where relatively high flows and extended radius of the water throw are desired. Rain gun sprinkler is available with an operating pressure of 2.0 to 7.5 kg/cm2

RAIN GUN MODELS

TS5MG
TS6MG
AQ42G

MODELS

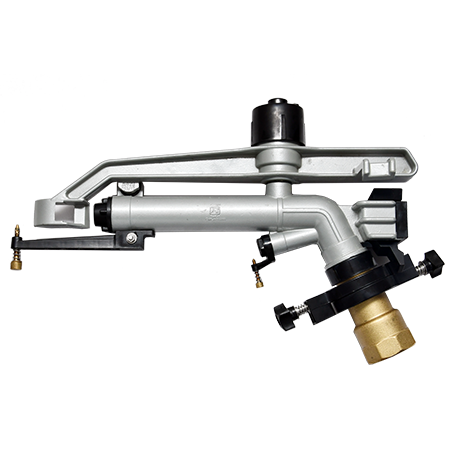

TS5MG MODEL

Available in 11/4" female threaded connection
Aluminium pressure die-cast body and arm
Light weight, hence easy to operate
Premium quality brass tube, nut & diffuser screw to ensure superior performance
Adjustable diffuser screw to allow stream breakage even at low pressure
Available in full circle as well as part circle designs

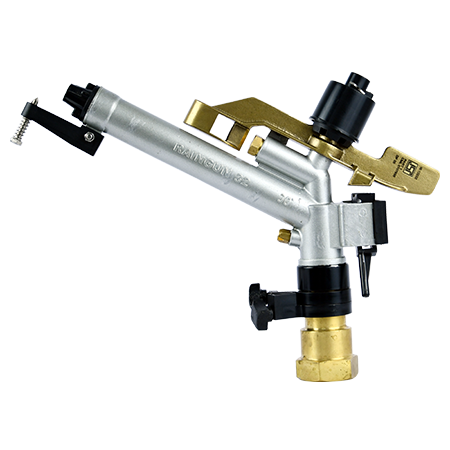

TS6MG MODEL

11/2" BSP/NPT female threaded connection
Aluminium pressure die-cast body and arm
Stainless steel spring and pivot pin
Premium quality brass and teflon bearing assembly
Engineering plastic components
Available in Full Circle as well as Part Circle models

AQ42G MODEL

Available in 1½" BSP/NPT Female threaded
Aluminium pressure die-cast body and arm
Heavy duty brass nut, tube, nozzles & Diffusor Screw
Stainless Steel Pivot Pin, springs, Nut and bolt
Plastic parts made of engineering plastic for durablity
Available both Full Circle & Part -circle design
Jet breaker screw to change the water jet from heavy droplets to fine spray
Pressure 2.0 - 5.0 kg/cm2 or 30 - 70Psi
Recommended spacing up to 36m for higher distribution uniformity
Trajectory Angle: 23°
